Pioneer agent line infrared thermometer advantage material recommendation
MCU we recommend Huada Semiconductor 32-bit MCU, which is very advantageous to replace foreign 8-bit and 16-bit, with super high cost performance, software development and ST brand are ARM-Cortex-M0 architecture, debugging development tools and development environment are consistent, no difference, customer software engineers can easily get started;

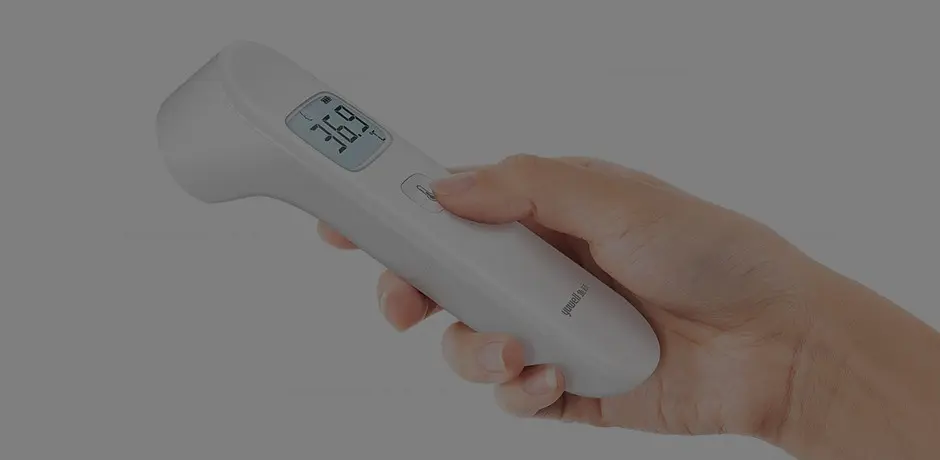

Popular product forehead thermometer: Mainly promote Huada HC32L136K8TA-LQ64
| Product Category | Brand | Model | Remarks |
| MCU | Huada | HC32L130F8UA-QFN32TR | 32-bit MCU, cost-effective |
| Huada | HC32L136K8TA-LQ64 | 32-bit MCU with segment code driver | |
| Huada | HC32F072F8TA-QFN32TR | 32-bit MCU with USB external wireless | |
| EEPROM | FMD | FT24C02A-KSR | 2KBIT 1MHZ 8SOP |
| Load Switch | Jeff Wei | GLF71301 | Maximum control current 1.5A |
| LDO | HTC | LM1117S-3.3 | 1A 3.3V SOT223 |
| MOS | Ted | TD6810 | 2.5V-6V 1.2A SOT23-5 |
| Sleep chip | Jeff Wei | GLF76321 | Enter sleep mode nA level power consumption |
| Connectors | New Full | 60087-**01-5001 | |
| New Full | 80206-XX21-1X01 | 100V DC/AC 2A |
Pioneer agent line infrared thermometer ESD recommendation
| Comchip P/N | PPP(W) | VRWM(V) | VBRmin(V) | IPP(A) | Cj(pF) | Package |
| CPDQ3V3-HF | 158 | 3.3 | 5 | 11.2 | 25 | SOD-923F |
| CPDQ3V3U-HF | 102 | 3.3 | 5 | 9.8 | 80 | SOD-923F |
| CPDQC3V3A-HF | 100 | 3.3 | 4.5 | 4 | 0.3 | 0402/DFN1006 |
| CPDQC3V3AU-HF | 56 | 3.3 | 4.2 | 4 | 0.6 | 0402/DFN1006 |
| CPDQC3V3C-HF | 65 | 3.3 | 3.6 | 5 | 6 | 0402/DFN1006 |
| CPDQC3V3T-HF | 180 | 3.3 | 3.6 | 17 | 25 | 0402/DFN1006 |
| CPDQR3V3U-HF | 77 | 3.3 | 5 | 7 | 38 | 0402/DFN1006 |
| CPDZ3V3U-HF | 66 | 3.3 | 5.7 | 6 | 35 | 0201/DFN0603 |
| CPDZC3V3U-HF | 66 | 3.3 | 5.7 | 6 | 35 | 0201/DFN0603 |
| CPDQ5V0-HF | 174 | 5 | 5.6 | 9.4 | 15 | 0402/DFN1006 |
| CPDQ5V0U1-HF | 107 | 5 | 6.2 | 8.7 | 65 | 0402/DFN1006 |
| CPDQC5V0-HF | 75 | 5 | 5.1 | 5 | 20 | 0402/DFN1006 |
| CPDQC5V0ESPC-HF | 100 | 5 | 7 | 4 | 0.35 | 0402/DFN1006 |
| CPDQC5V0HE-HF | 128 | 5 | 5.5 | 8 | 20 | 0402/DFN1006 |
| Comchip P/N | PPP(W) | VRWM(V) | VBRmin(V) | IPP(A) | Cj(pF) | Package |
| CPDQC5V0P-HF | 85 | 5 | 5.6 | 5 | 9 | 0402/DFN1006 |
| CPDQC5V0R-HF | 154 | 5 | 5.6 | 11 | 30 | 0402/DFN1006 |
| CPDQC5V0U-HF | 180 | 5 | 6 | 15 | 130 | 0402/DFN1006 |
| CPDQC5V0USP-HF | 60 | 5 | 5.4 | 3 | 0.9 | 0402/DFN1006 |
| CPDQR5V0-HF | 75 | 5 | 5.1 | 5 | 20 | 0402/DFN1006 |
| CPDQR5V0C-HF | 68 | 5 | 6.1 | 4 | 30 | 0402/DFN1006 |
| CPDQR5V0HE-HF | 128 | 5 | 5.5 | 8 | 20 | 0402/DFN1006 |
| CPDQR5V0U-HF | 180 | 5 | 6 | 15 | 130 | 0402/DFN1006 |
| CPDQR5V0USP-HF | 50 | 5 | 5.4 | 2.5 | 0.9 | 0402/DFN1006 |
| CPDQT5V0-HF | 174 | 5 | 5.6 | 9.4 | 15 | 0402/DFN1006 |
| CPDQT5V0HE-HF | 65 | 5 | 6.8 | 7 | 22 | 0402/DFN1006 |
| Comchip P/N | PPP(W) | VRWM(V) | VBRmin(V) | IPP(A) | Cj(pF) | Package |
| CPDQT5V0U-HF | 107 | 5 | 6.2 | 8.7 | 65 | 0402/DFN1006 |
| CPDZ5V0-HF | 52 | 5 | 5.6 | 4 | 3 | 0201/DFN0603 |
| CPDZ5V0H-HF | 50 | 5 | 5.8 | 5 | 10 | 0201/DFN0603 |
| CPDZ5V0U-HF | 80 | 5 | 5.8 | 4 | 0.9 | 0201/DFN0603 |
| CPDZC5V0HP-HF | 60 | 5 | 5.5 | 4 | 9 | 0201/DFN0603 |
| CPDQ12V0U-HF | 140 | 12 | 13.5 | 5.9 | 30 | SOD-923F |
| CPDQC12VE-HF | 115 | 12 | 14 | 5 | 30 | 0402/DFN1006 |
| CPDQC12VEU-HF | 110 | 12 | 13.5 | 5 | 60 | 0402/DFN1006 |
| CPDQR12V0U-HF | 120 | 12 | 13.3 | 5 | 60 | 0402/DFN1006 |
| CPDQR12VEU-HF | 110 | 12 | 13.5 | 5 | 60 | 0402/DFN1006 |
